DUCATI E-BIKE

TK-01RR-S

Now also available in limited edition.

CONTACT US

Off road. At top speeds.

The TK-01RR is pure adrenaline. An E-Enduro model geared toward hardcore off-road riding, equipped with the Shimano EP8 motor with 85Nm of torque. Every element, from geometries to high-end components such as the 12-speed drivetrain and 4-piston Shimano XT brakes, 180mm Öhlins RXF38 fork and Öhlins TTX shock absorber, is geared to enhance performance in every situation, especially when the trails get tougher and more technical.

Also available in a Limited Edition version, an exclusive and sought-after model, produced in a limited number of units, which incorporates the main features of the TK-01RR and even more advanced components to enhance downhill performance, such as the Öhlins DH38 double-plate fork, a multiple Downhill MTB World Cup winner.

CONTACT US

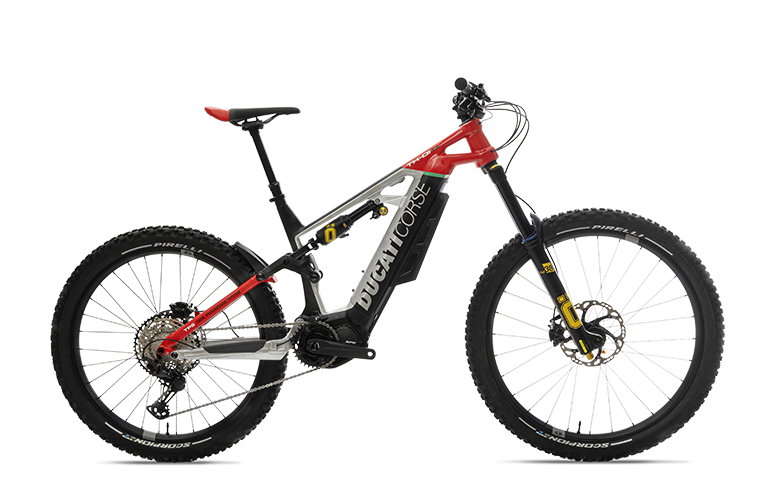

TK-01RR

The TK-01RR is the top of the range Ducati E-MTB, an E-Enduro bike with components and technical solutions for even more extreme enduro riding.

Shimano EP8 engine

A benchmark in the category thanks to its low weight of 2.6 kg, compact size and a Q factor of only 177 mm. With a maximum torque of 85 Nm and an assistance ratio of up to 400%, this drive unit ensures great pedalling power with always fluid, direct and natural delivery, for complete control of the vehicle. Combined with the Shimano E-tube Project App, the EP8 system allows advanced levels of customization to adapt the character of the engine to your needs. All our e-mtb come with two pre-set profiles: "long ride" to favour long distances and "fast ride" for greater engine responsiveness.

Aluminium frame

With hydroformed, forged and CNC machined parts, this frame features “enduro oriented” geometries characterized by a 75.5° seat tube and 64.5° head angle, which allow you to overcome any obstacle. The new standard 1.8" tapered head tube gives a unique design and greater stiffness in the steering area, to tackle the most gruelling stretches at top speeds. The lowered 783mm standover and the verticalized down tube that houses the 630Wh battery, ensure excellent handling guaranteed by a low centre of gravity.

Öhlins suspension

Simply the best available on the market, the result of all Öhlins' experience in racing. Öhlins RXF38 air fork, with 38mm stanchions and 180mm travel. The fork's recalibrated dual-piston, three-chamber air spring system allows for quick, easy and complete adjustment. Öhlins TTX air custom tuned Ducati shock absorber, 170 mm travel with Horst quadrilateral TPS (Thok progressive system) linkage. Fork and shock absorber are adjustable in compression at high and low speeds.

630Wh battery

Thanks to a lowered 783mm standover and the verticalized down tube, the Shimano battery is integrated into the frame in such a way as to ensure great autonomy without sacrificing the handling given by a low centre of gravity.

Main components

Maximum performance and reliability in all conditions thanks to high-end components such as the KS dropper post with remote control, the Shimano XT 12-speed 10-51T rear derailleur transmission, the 4-piston Shimano XT brake system in combination with Shimano 203mm discs with "Ice technologies" system. The special Renthal carbon handlebar reduces vibrations offering an extra degree of comfort.

Tyres and rims

Crankbrothers Synthesis aluminium rims in different sizes (29" x 31 mm front, 27.5" x 35 mm rear) with Pirelli Scorpion Enduro S 29" x 2.6 SmartGrip Hyperwall tyres at the front and Pirelli Scorpion E-MTB S 27.5" x 2.6 at the rear. The differentiated wheel size allows you to overcome the most difficult obstacles with momentum and maximum rear traction.

TK-01RR

Frame
Thok 6061 aluminium forged and CNC machined, headtube tapared 1.8”
Engine
Shimano Steps EP8 (250 Watt – 85 Nm - 2.6 kg)
Battery
Shimano – 630 Wh (integrated)
Fork
Öhlins - RXF38 Air TTX18, Boost - 29", 180 mm of tr avel, HS/LS compression and rebound adjust
Rear shock
Öhlins - TTX Air- 170 mm travel, custom tuned Ducati
Brakes
Shimano - Deore XT - 4 pistons caliper with “Ice Technologies” rotor 203 mm diameter
Rear derailleur
Shimano - Deore XT 12 S

TECH SPECS

  • Pedals
    Alloy pedals
  • Fork
    Öhlins - RXF38 Air TTX18, Boost - 29", 180 mm of tr avel, HS/LS compression and rebound adjust
  • Rear shock
    Öhlins - TTX Air- 170 mm travel, custom tuned Ducati
  • Rear shock
    Öhlins - TTX Air- 170 mm travel, custom tuned Ducati
  • Engine
    Shimano Steps EP8 (250 Watt – 85 Nm - 2.6 kg)
  • Display
    Shimano - Display SC-EM800 LCD display with remote control
  • Battery
    Shimano – 630 Wh (integrated)
  • Brakes
    Shimano - Deore XT - 4 pistons caliper with “Ice Technologies” rotor 203 mm diameter
  • Rear derailleur
    Shimano - Deore XT 12 S
  • Shift lever
    Shimano - 12 SLX
  • Crank
    FSA - 165 mm with chainring 34T
  • Handlebar
    Renthal Carbon 35 mm, rise 20 mm, 800 mm width
  • Wheels
    Crankbrothers - Synthesis – Alloy 29" x 31 mm, 27.5" x 35 mm
  • Tires
    Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29" x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5” x 2.6Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29" x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5” x 2.6
  • Seatpost
    KS - Dropper post micro height adjustable with remote control
  • Saddle
    Ducati Fit - hollow Cr.Mo rail
  • Display
    Shimano - Display SC-EM800 LCD display with remote control
  • Battery
    Shimano – 630 Wh (integrated)
  • Brakes
    Shimano - Deore XT - 4 pistons caliper with “Ice Technologies” rotor 203 mm diameter
  • Rear derailleur
    Shimano - Deore XT 12 S
  • Shift lever
    Shimano - 12 SLX
  • Crank
    FSA - 165 mm with chainring 34T
  • Handlebar
    Renthal Carbon 35 mm, rise 20 mm, 800 mm width
  • Wheels
    Crankbrothers - Synthesis – Alloy 29" x 31 mm, 27.5" x 35 mm
  • Tires
    Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29" x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5” x 2.6Front: Pirelli Scorpion Enduro S, TR, SmartGrip, HyperWall 29" x 2.6 Rear: Pirelli Scorpion E-MTB S, TR, SmartGrip, HyperWall, 27.5” x 2.6
  • Seatpost
    KS - Dropper post micro height adjustable with remote control
  • Saddle
    Ducati Fit - hollow Cr.Mo rail
  • Size
    S – M – L – XL

Ducati E-Bike size guide

Choosing the bike size that best suits you is the most important aspect. Check out the size guide.
