Diavel V4

CONTACT US

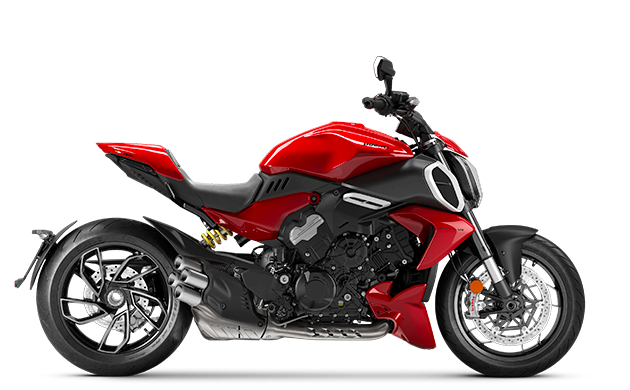

Muscular, sporty, exaggerated, and elegant at the same time, able to magnetize attention in any context, synthesizes seemingly distant technical, dynamic, and stylistic features, such as those of sport naked and muscle cruisers.

The exhilarating performances of the Granturismo engine are combined with surprising agility and dynamicsfor such a motorcycle

Ducati-Diavel-V4

V4 Granturismo: the undisputed protagonist

In the Diavel philosophy, the engine is the fulcrum around which everything revolves: performance, character and style. That's why Ducati designers started with the V4 Granturismo, making it the star of all design elements, with the mechanics prominently displayed as a distinctive feature.

Muscle-cruiser with supersport personality

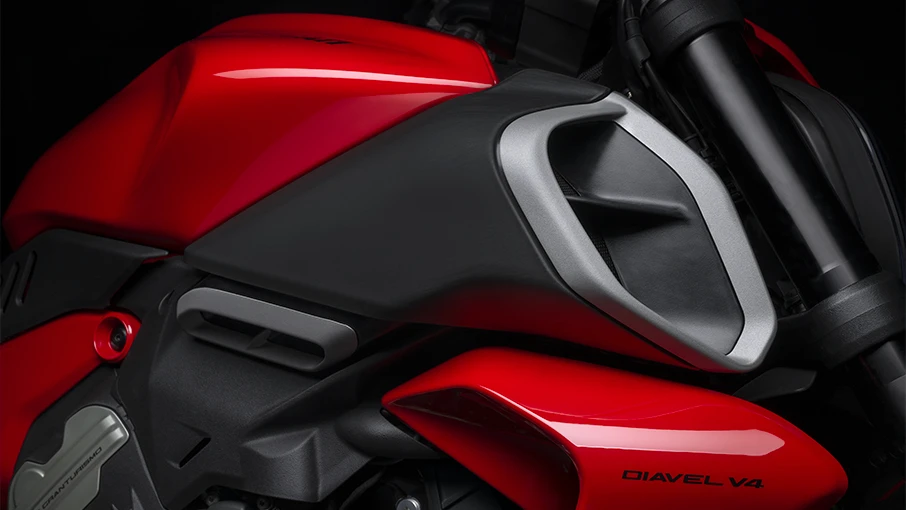

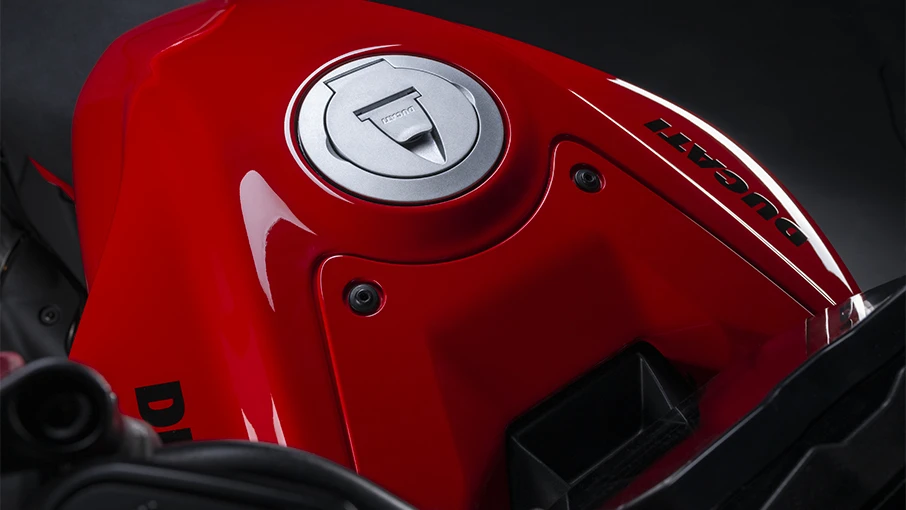

With a steel fuel tank with an animated, sculptural shape reminiscent of Ducati supersport bikes, the tail is light, slender and sharp. The air intakes are a breaking element in the side view, communicating all the muscular power.

Character and uniqueness are found in the details

The LED daytime running light at the front has a double-C shape. The rear light cluster consists of an array of point LEDs under the tail, with a highly original design that repeats the double C of the DRL and can not leave indifferent.

Surprisingly light

The Diavel V4 features a chassis with a monocoque frame and single-sided swingarm, both made of aluminum, which combined with the lightness of the V4 Granturismo results in a kerb weight without fuel of 223 kg, for a saving of more than 13 kg compared to the Diavel 1260 S.

Listen to the Sound of the Diavel V4 🔊

Unique personality that doesn't go unnoticed. Enjoy the sound of the Diavel V4 and get ready to conquer the city.

    Unmistakable design.Unique personality.

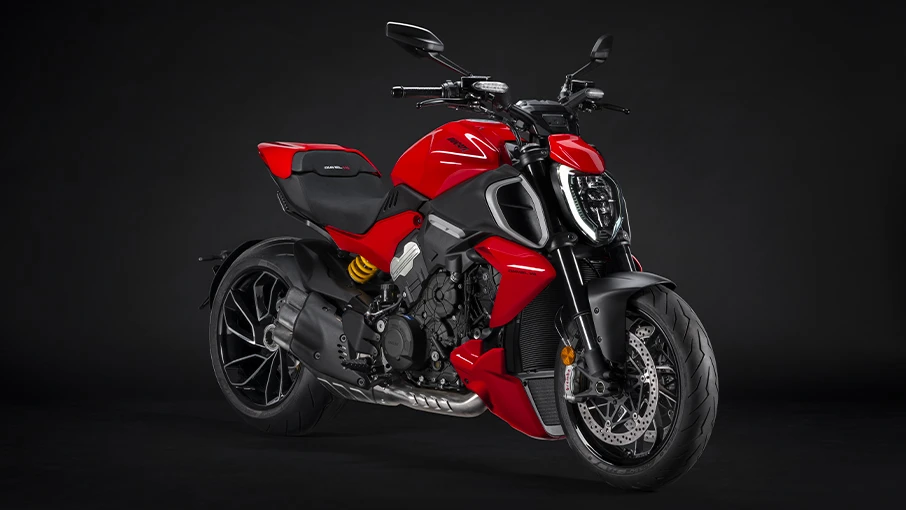

    Muscular, gritty, with its broad "shoulders" and proudly visible four-exit exhaust, the Diavel V4 is designed to convey boldness and not go unnoticed. Starting with the new front and rear light cluster, to the retractable passenger footpegs and the retractable rear grab bar are the details that make the difference and make the design of this bike even more unique and unmistakable.

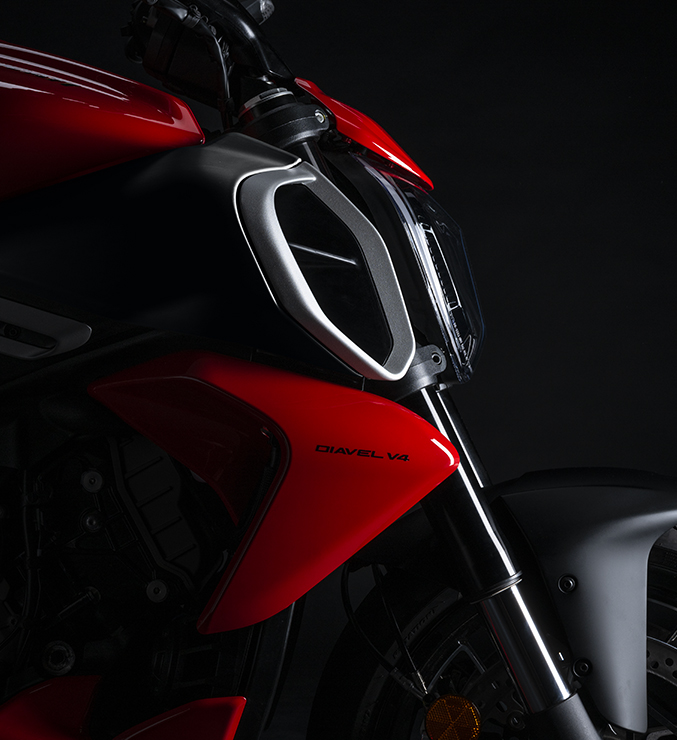

      Muscular lines: character and personality

      The front view also replicates the proportions of a lean and athletic physique, with broad shoulders giving way to a slim and tapered waistline with the classic sporty V-shaped tip. The air intakes, an element of rupture in side view, communicate the power of the V4 Granturismo, amplifying the scenic effect of its presence in front view.

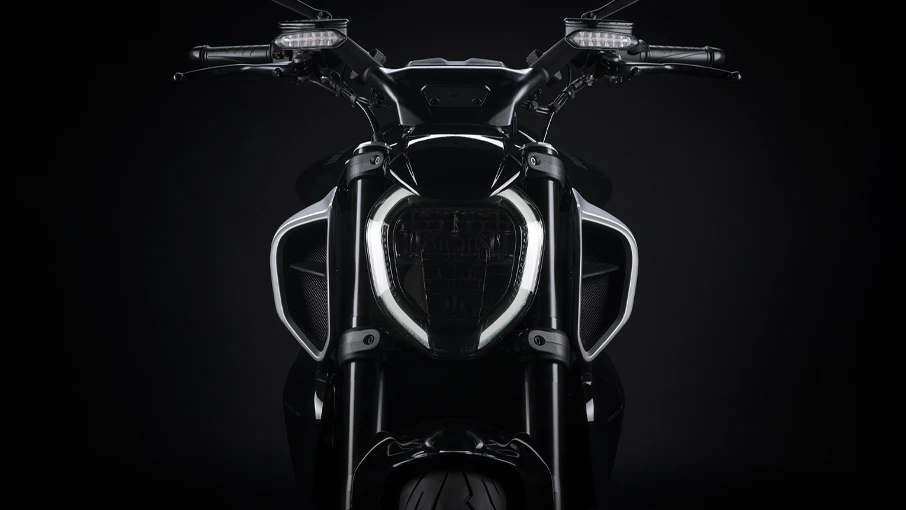

      Double-C DRL

      At the front, the LED daytime running light is shaped like a double C, while the dynamic direction indicators are integrated into the handlebar, in front of the brake and clutch controls, making the front view cleaner.

      Folding Footrests

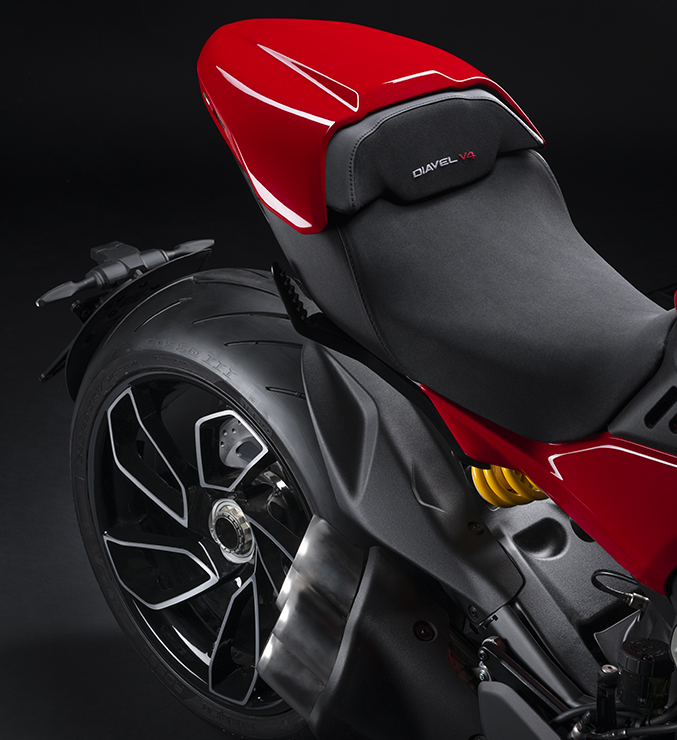

      To maintain maximum cleanliness in the single-seater configuration but at the same time offer the possibility of accommodating a passenger, the folding footpegs return and the retractable rear handle remains, two solutions capable of perfectly synthesizing style and practicality.

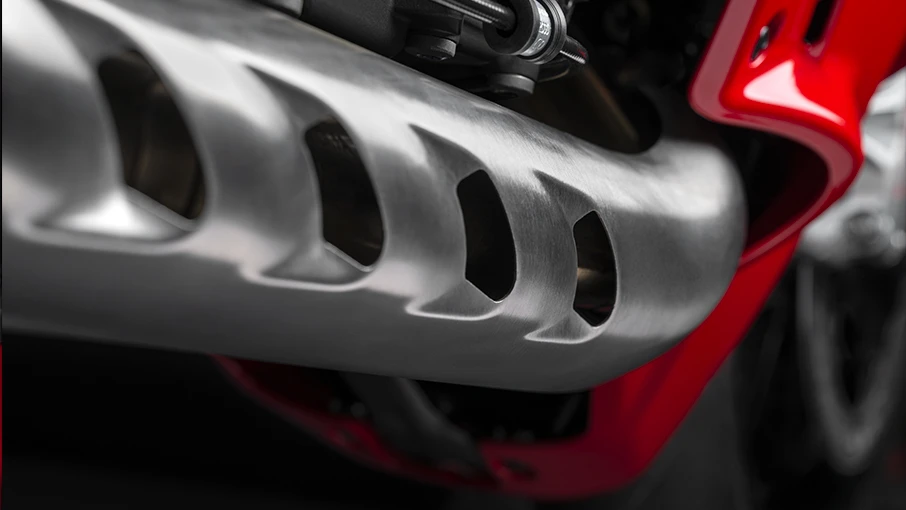

      Exposed exhaust

      The exhaust returns to prominence in the side view and ends with a four-outlet muffler that immediately tells of the 4-cylinder architecture of the V4 Granturismo engine.

      Designed around the V4
      Granturismo

      TheV4 Granturismo takes center stage on our muscle bike and allows it to express its personality to the fullest. Ducati's four-cylinder engine guarantees high performance, combined with smoothness and regularity, at every rpm. The new chassis combines ideally with what has always been the Diavel's strengths, such as its characteristic riding position and comfort in medium-range touring. In addition, thanks to a major weight reduction, handling and agility improve noticeably.

      Ducati-Diavel-V4-MY23

      Power, smoothness and lightness

      The Diavel adopts the 1,158 cc V4 Granturismo engine, a central element of the bike’s design and at the same time a technical choice that improves performance, dynamics and riding pleasure.

      An exciting and unmistakable sound

      The Twin Pulse firing order, together with the dedicated exhaust system developed with great attention to "sound quality", unmistakably characterizes the stamp of the V4 Granturismo.

      Designed to go far

      The record valve adjustment check interval at 60,000 km and the scheduled oil change every 15,000 km or 2 years mean only one thing: more time to drive and enjoy the ride.

      The extended deactivation system for the rear cylinders

      The development of the V4 Granturismo also took into consideration fuel consumption and comfort: the extended deactivation system of the rear bank acts both during stops with the engine running, in order to reduce consumption and improve the thermal comfort of the rider and passenger.

      DiavelV4

      Chassis and ergonomics

      The technically refined chassis is centered on a lightweight aluminum monocoque frame attached to the cylinder heads, a single-sided swingarm cast in the same material, and steel trellis rear frame.

      Suspension

      Fully adjustable suspension (50 mm diameter upside-down forks and a single shock absorber with a separate piggyback reservoir). The wheel travel is 120 mm at the front and 145 mm at the rear, 15 more than Diavel 1260, with positive effects on the comfort of both the rider and the passenger.

      Brakes

      At the front, the braking performance of the Diavel V4 is guaranteed by Brembo brakes with Stylema® radial monobloc calipers operated by a PR16/19 radial brake master cylinder with integrated aluminium reservoir acting on two 330 mm diameter floating discs. At the rear, the 265 mm diameter disc is braked by a two-piston caliper, also produced by Brembo.

      Tires and rims

      Five-spoke wheels featuring an exclusive design with machined surfaces. At the front, the wheel rim is 3.5” x 17”, while at the rear there is an 8.0” x 17” rim. A 120/70 ZR17 tyre is mounted on the front rim, while the rear tyre is 240/45 ZR17. The tyres are Pirelli Diablo Rosso III.

      Ergonomics

      Saddle positioned at 790 mm from the ground and redesigned to offer greater longitudinal space, support in strong acceleration and ample freedom of lateral movement of the body when leaning, thanks also to the excellent connection with the tank and to the footpegs located in a central position. The wide and raised handlebars have been brought 20 mm closer to the rider's body to improve comfort and control in all situations.

      SAFETY

      ABS Cornering

      An anti-lock braking system is a safety system that prevents a vehicle’s wheels from locking during heavy braking. Essentially, the ABS regulates the braking pressure on the wheel, allowing it to continuously have traction on the riding surface. There are different ABS intervention levels, depending on the selected Riding Mode.
      COMFORT

      Cruise Control

      Electronic system introduced by Ducati for the first time in 2014 on the Multistrada 1200 that allows you to automatically maintain the speed set by the rider without twisting the throttle.
      SAFETY

      Ducati Brake light (DBL)

      In the event of sudden braking, automatically activates the flashing of the rear light to alert the following vehicles, a solution that further improves rider’s safety.
      COMFORT

      Ducati Multimedia System (DMS)*

      The bike is ready for this infotainment system for connecting the smartphone to the bike via Bluetooth, which allows the rider to manage the main multimedia functions of the mobile phone.

      * The feature is available as a Ducati Performance accessory

      PERFORMANCE

      Ducati Quick Shifter (DQS)

      Electronic system derived from racing that allows you to change gears without using the clutch and without closing the throttle when shifting to a higher gear.

      SAFETY

      Daytime Running Light (DRL)

      These are the daytime running lights that are used to comply with the obligation to use dipped headlights during the day.

      SAFETY

      Ducati Traction Control (DTC)

      Traction control is a system that prevents (or limits) spin of the rear wheel under acceleration. Gently manages engine clearance recovery, modulating the torque delivered and avoiding the peak that can occur when clearance recovery is complete, so as to make it even easier and more predictable. acceleration out of corners.
      PERFORMANCE

      Ducati wheelie control (DWC)

      System that controls the wheelie and allows you to achieve maximum acceleration performance with ease and safety.
      SAFETY

      Engine Brake Control (EBC)

      The EBC helps riders to optimize the stability of the bike in extreme cornering conditions, balancing the forces to which the rear tire is subjected in conditions of intensive application of the engine brake.
      PERFORMANCE

      Ride-by-Wire system

      Also known as electronic accelerator, it is a system that electronically manages the opening and closing of the throttle (s).
      COMFORT

      Turn-by-turn Navi*

      The bike is ready for this feature, which gives the possibility to connect your smartphone to the bike via Bluetooth and visualise directions directly on your dashboard, without using external accessories or having to stop to consult your phone.

      * The feature is available as a Ducati Performance accessory

        State-of-the-art
        electronic equipment

        The latest generation electronic package of the Diavel V4 is based on the use of a 6-axis inertial platform (6D IMU - Inertial Measurement Unit) capable of instantly detecting the roll, yaw and pitch angle of the motorcycle. The operating parameters of each control are associated by default with the four Riding Modes with which the Diavel V4 is equipped: Sport, Touring, Urban and the new Wet mode, designed specifically for low-grip surfaces. Each riding mode includes a power mode, which defines the maximum level of power that can be delivered and engine response, and the intervention levels of the electronic riding aid systems.

        Sport Riding Mode

        The Sport Riding Mode is the best performing one. The Diavel V4, with this Riding Mode, delivers its 168 hp with a direct and gutsy response.

        Touring Riding Mode

        In Touring Riding Mode, the maximum power of the Diavel V4 remains 168 hp, but the delivery is softer and more progressive and the level of intervention of DTC and DWC is raised for greater vehicle controllability.

        Urban Riding Mode

        The power delivery of the Urban Riding Mode is reduced to 115 hp (Low Power Mode) with a particularly softened and progressive response to better manage the continuous changes of surface.

        Wet Riding Mode

        The Wet Riding Mode is designed for riding on low-grip surfaces, or more precisely in wet conditions.
        Ducati Multimedia System
        The rider can manage all the electronic systems through backlit controls on the handlebars and the new 5-inch color TFT dashboard, which also offers Bluetooth connectivity to pair your smartphone and use it for calls, text messages and music, or use the Turn-by-turn navigation system (available as an accessory) via the Ducati Link App.
        Turn By Turn Navigator (accessory)
        If the accessory Turn-by-turn navigation system is installed, the display provides a dedicated display, in which half is devoted to standard information (speed, engaged gear, tachometer, etc.) and the other half is reserved for Turn-by-turn navigator instructions, implemented through the Ducati Link App installed on the smartphone. The destination is set on the latter; by activating the start of navigation, the instructions will then be displayed on the dashboard.
        ABS Cornering EVO
        The ABS system of the Diavel V4 includes the "cornering" function, which extends the ABS intervention even when the bike is leaning. The ABS Cornering appropriately uses the signals of the Bosch IMU inertial platform to optimally dose the braking power of the front and rear wheels even in critical situations and with the bike at an angle. By interacting with the Riding Modes, the system is able to offer solutions suitable for every situation and riding condition as well as rider preference. The system acts with three different levels of intervention. Level 1 offers maximum performance for sporty riding, does not have the Cornering function, the rear lift detection (lift-up) activated and allows the rear to yaw when braking with ABS applied to the front only. Level 2 ensures a balance between front and rear without rear wheel lift detection but with Cornering functionality active and calibrated for sporty riding. Level 3 allows the optimization of the braking action with detection of rear wheel lift and the Cornering function activated and calibrated for maximum safety (safe & stable configuration).
        Ducati Traction Control (DTC) EVO 2
        The new Ducati Traction Control (DTC) EVO 2 strategy derives from the Ducati Desmosedici GP18 and is already used on the Panigale V4 and Streetfighter V4 families. In addition to interfacing with the 6-axis Inertial Measurement Unit (IMU) and adapting the intervention and slide to the lean angle of the bike, the software significantly improves power management out of corners thanks to the new "predictive” control strategy. Acting not only on the instantaneous value of the rear spin, but also on its variation, it intercepts the loss of grip more quickly and reduces slippage peaks, thus ensuring a quicker and more regular intervention. All this translates into greater vehicle stability when exiting corners, even in less-than-optimal grip conditions, greater acceleration and improved performance. Furthermore, the DTC EVO 2, in addition to management of the ignition and injection advance, provides for the intervention of the valves of the throttle bodies when a rapid intervention of the control is not necessary, allowing to maintain optimal combustion parameters and obtain smoother engine response and intervention. The DTC EVO 2 can be set on 4 different levels (3 in dry conditions and 1 in wet conditions), allowing the rider to adapt the control strategy to his or her riding style and grip conditions, obtaining maximum performance.
        Ducati Wheelie Control (DWC) EVO
        The Diavel V4 is also equipped with the latest version of Ducati Wheelie Control (DWC) EVO, adjustable on 4 levels. This system, using information from the Bosch 6D IMU, controls wheelie and allows for maximum acceleration performance with ease and safety. The DWC EVO more accurately detects the presence and extent of wheelies and intervenes to control them with a greater level of precision, so as to satisfy the rider's requests even more accurately.
        Ducati Power Launch (DPL) EVO
        This system, adjustable on three levels, is able to guarantee lightning-fast starts, allowing the rider to concentrate only on the management of the clutch release, allowing the "Dragster" soul of the Diavel V4 to express itself fully. Once set, it will be sufficient to engage first gear and open the throttle: the DPL during the first phase of the start, while the driver modulates the clutch release, will keep the V4 Granturismo stable around an optimal speed according to the selected DPL level; in the second phase, when the clutch is fully released, the DPL will control the torque delivered to ensure the maximum possible acceleration based on the predefined level. For its operation, the DPL exploits the functions of the DWC and always keeps the DTC active, to guarantee the highest level of safety in every situation. The system is automatically disengaged above the speed at the end of the manoeuvre, or once the third gear is engaged. To preserve the clutch, the system uses an algorithm that allows only a limited number of consecutive starts. The number of starts available is restored when the rider uses the bike normally. The DPL is adjustable on 3 levels. Level 1 is the one that privileges starting performance, level 3 is the most “safe and stable”.
        Ducati Quick Shift up/down (DQS) EVO 2
        The DQS EVO 2 with up / down function, developed for the Panigale V4, makes use of the information on the lean angle to maximize the stability of the bike during the shifting phase when cornering. The DQS EVO 2, in addition to minimizing shift times, allows you to downshift without using the clutch, ensuring even more effective braking. The system includes a bi-directional microswitch integrated in the kinematics of the lever which, at each gearshift operation, sends a signal to the control unit of the V4 Granturismo. The system acts separately for shifting and downshifting, integrating the action on ignition advance and injection, already present on the up-shift system, with the controlled opening of the throttle valve for down-shift operation thanks to the full Ride by Wire system management.
        Cruise Control
        Cruise Control makes highway transfers more relaxed.

        SILENCER

        RETRACTABLE FOOTREST

        EXHAUST COLLECTOR

        TFT FULL LED

        RIDING MODE

        ABS

        DYNAMIC DIRECTION INDICATORS

        REAR SHOCK MONO SHOCK

        V4 GRANTURISMO

        BREMBO STYLEMA BREAK CALIPERS

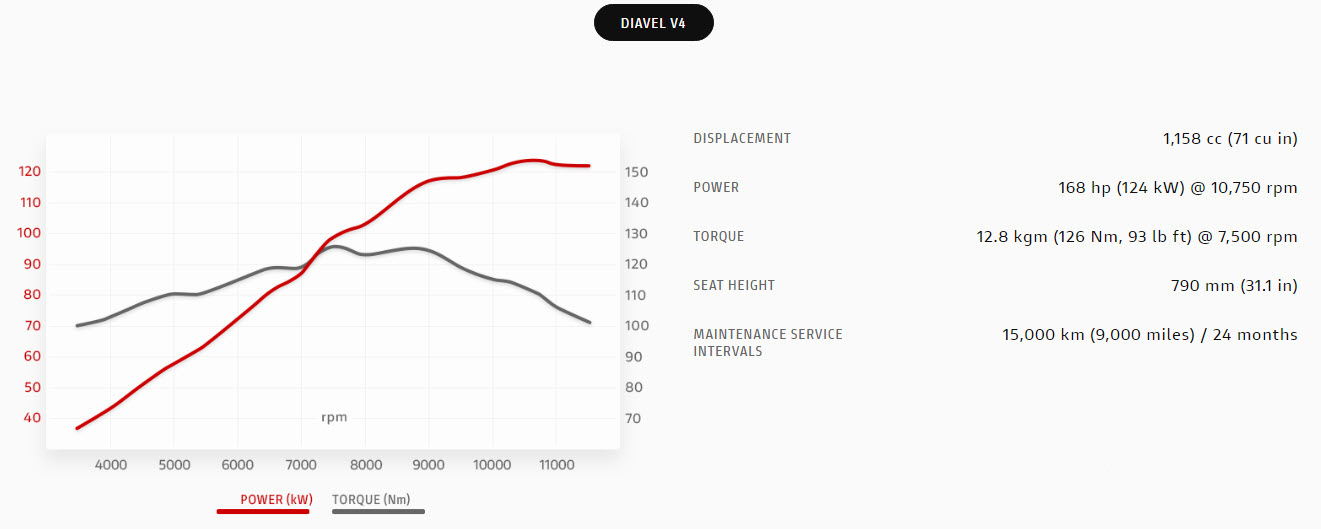

          • Type

            V4 Granturismo, V4 - 90°, 4 valves per cylinder, counter-rotating crankshaft, Twin Pulse firing order, liquid-cooled

          • Displacement

            1,158 cc (71 cu in)

          • Bore x Stroke

            83 mm x 53.5 mm

          • Compression Ratio

            14.0:1

          • Power

            168 hp (124 kW) @ 10,750 rpm

          • Torque

            12.8 kgm (126 Nm, 93 lb ft) @ 7,500 rpm

          • Fuel Injection

            Electronic fuel injection system, Øeq 46 mm elliptical throttle bodies with Ride-by-Wire system

          • Exhaust

            limiter">Stainless steel exhaust muffler with 4 exit pipes, 2 catalytic converters, and 4 lambda probes.

          • Gearbox

            6 speed with Ducati Quick Shift up/down

          • Primary drive

            Straight cut gears; Ratio 1.80:1

          • Ratio

            1=40/13, 2=36/16, 3=34/19, 4=31/21, 5=29/23, 6=27/25

          • Final drive

            Chain, front sprocket z16, rear sprocket z43

          • Clutch

            Hydraulically controlled slipper and self-servo wet multiplate clutch

          • Frame

            Aluminum monocoque frame

          • Front suspension

            Ø 50 mm fully adjustable usd fork

          • Front Wheel

            Light alloy cast, 3,5" x 17"

          • Front Tyre

            Pirelli Diablo Rosso III, 120/70 ZR17

          • Rear suspension

            Fully adjustable monoshock, aluminium single-sided swingarm

          • Rear Wheel

            Light alloy cast, 8,0" x 17"

          • Rear Tyre

            Pirelli Diablo Rosso III, 240/45 ZR17

          • Wheel Travel

            120 mm / 145 mm (4.7 in / 5.7 in)

          • Front Brake

            2 x Ø 330 mm semi-floating discs, radially mounted Brembo Stylema monobloc 4-piston callipers, radial master cylinder PR16/19, Cornering ABS

          • Rear Brake

            Ø 265 mm disc, Brembo 2-piston floating calliper, Cornering ABS

          • Wet weight no fuel

            223 kg (492 lb)

          • Seat Height

            790 mm (31.1 in)

          • Wheelbase

            1,593 mm (62.7 in)

          • Rake

            26°

          • Trail

            112 mm (4.4 in)

          • Fuel Tank Capacity

            20 l (5.3 US gal)

          • Number of Seats

            2

          • Safety Equipment

            Riding Modes, Power Modes, Cornering ABS, Ducati Traction Control, Ducati Wheelie Control, Daytime Running Light*, Ducati Brake Light

          • Standard Equipment

            Ducati Quick Shift, Ducati Power Launch, Cruise control, Hands-Free, 5" TFT colour display, Ducati Multimedia System, Backlit handlebar switches, Full-LED lighting system, Dynamic turn indicators*

          • Ready for

            Turn-by-Turn navigation system

          • Warranty

            24 months, unlimited mileage

          • Maintenance service intervals

            15,000 km (9,000 miles) / 24 months

          • Standard

            Euro 5

          • CO2 Emissions

            154 g/km

          • Emission Notes

            Only for countries where Euro 5 standard applies.

          • NOTES

            *Please check with your dealer product availability. Bike specifications and equipment may vary from market to market. Please refer to your local dealer for further information

          Ducati design takes
          center stage

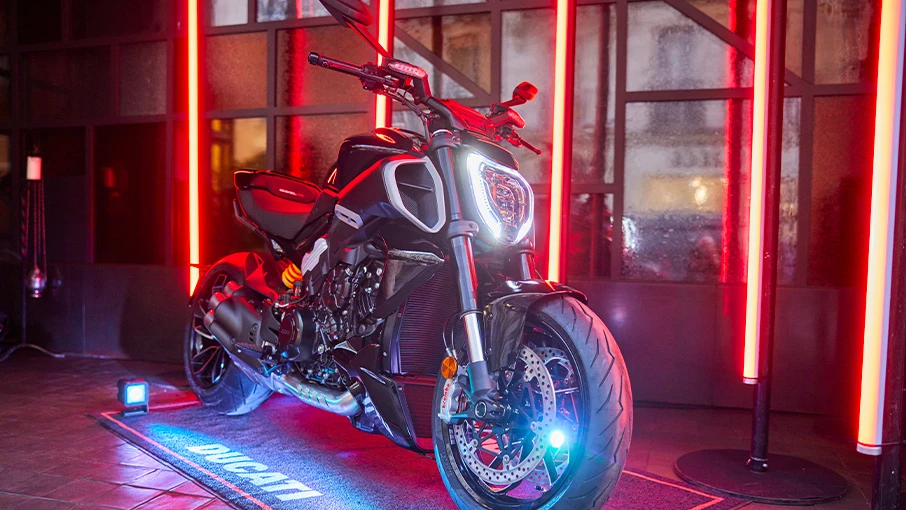

          Amsterdam, Paris, Brussels, London and New York City, Kyoto, Shanghai. Seven exclusive evenings where Diavel design took centre stage in front of an audience of special guests. Read the news about the Diavel Design Nights to find out more.

          Diavel V4 is the bike that conquered EICMA, winning the title of the most beautiful motorbike at the show in 2022, and won prestigious awards such as the Good Design Award and Special Mention in the Excellent Product Design category at the German Design Awards 2024.

          It was also voted 'Best Cruiser' by the international press.

            Customization

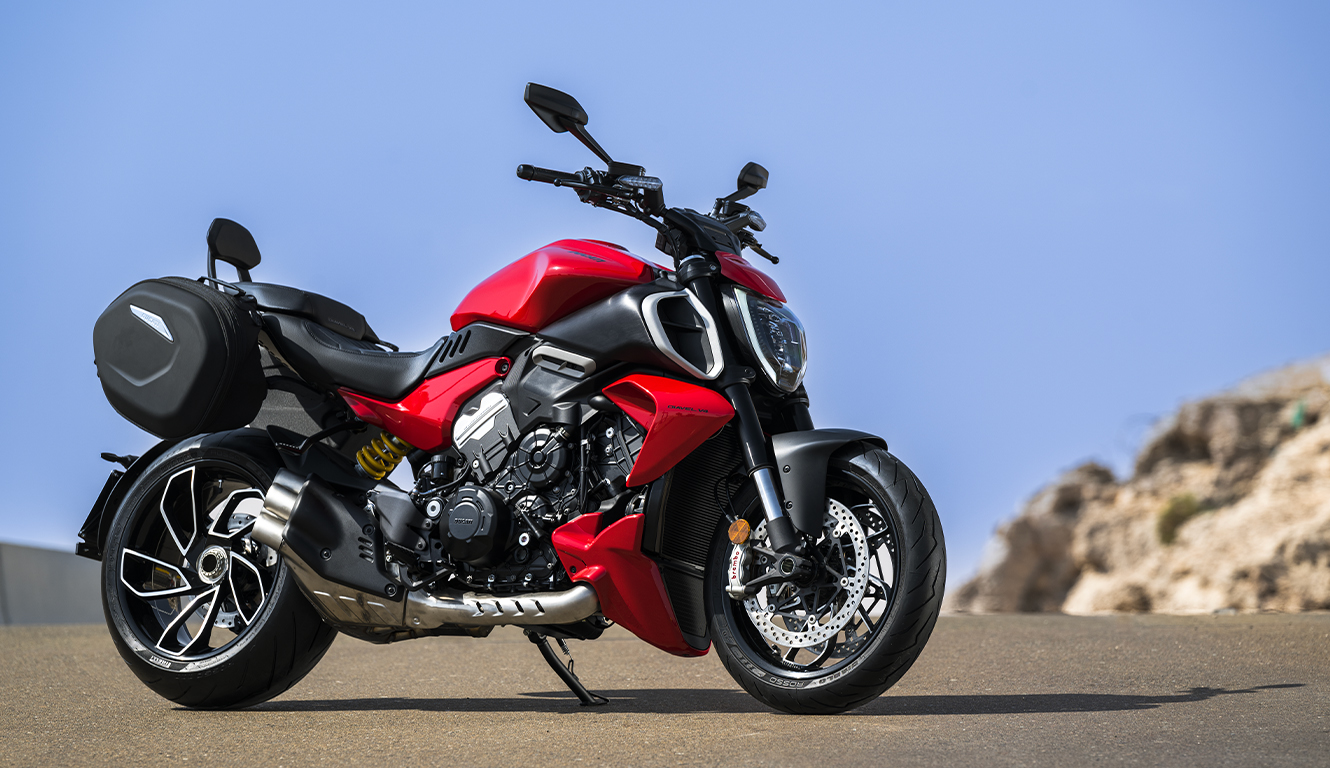

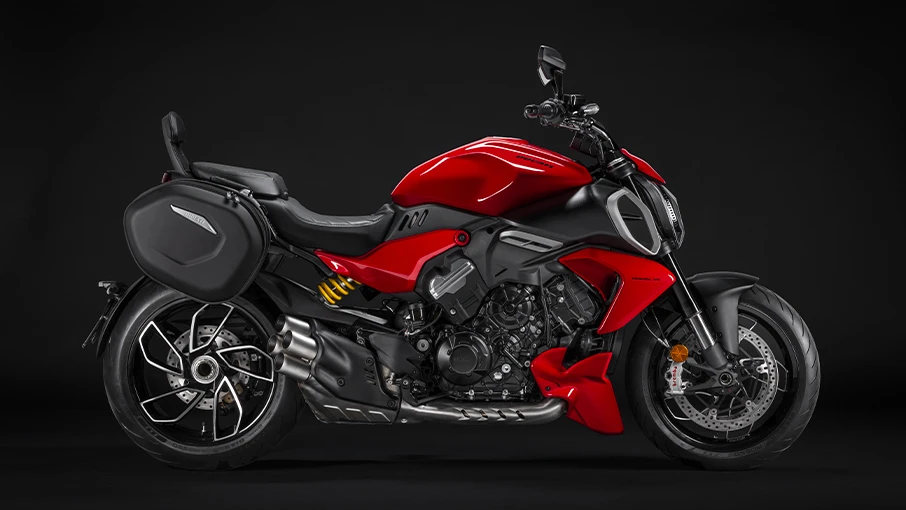

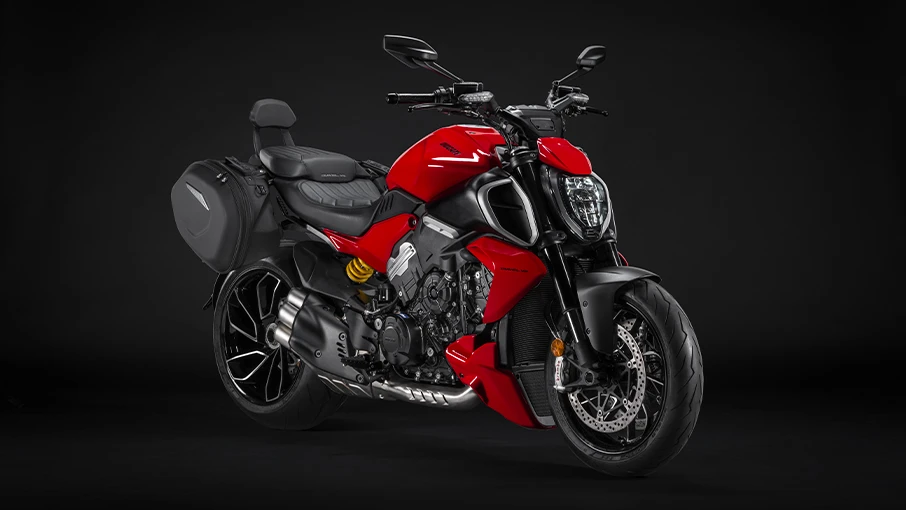

            Enthusiasts who wish to enhance the touring capabilities of their Diavel V4 will find many options in the Ducati Performance catalogue, starting from the semi-rigid cases with a total capacity of 48 liters for which Diavel V4 is ready (no frames needed) which along with the passenger backrest and the touring plexi allow comfortable trips even with a passenger.

            The sportier side of the Diavel V4, on the other hand, is amplified by the street-legal exhaust silencer with a cover and four titanium end caps. Billet parts, carbon parts, dry clutch (for racing use only), forged wheels and brake calipers in red or black color further expand the possibility of customizing the Diavel V4.

            Born to be a protagonist

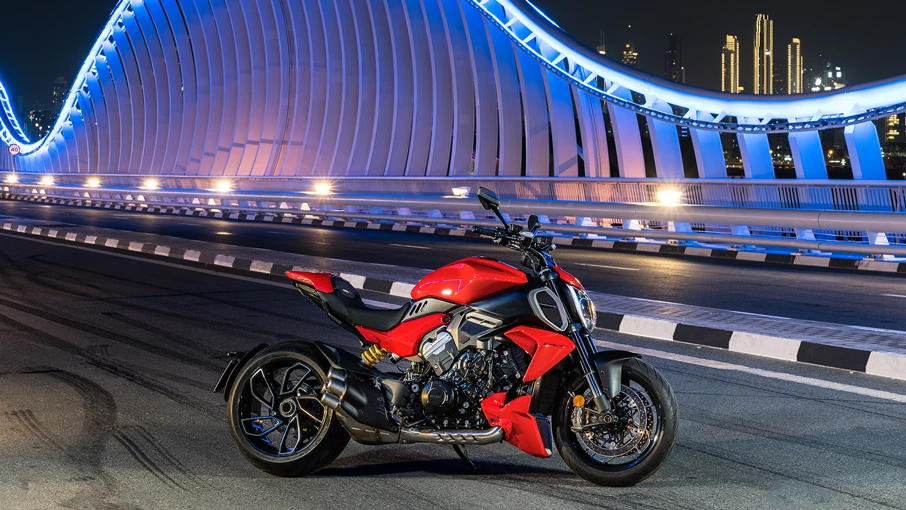

            The Ducati Diavel V4 in action: as at ease among city curves and urban glamour as it is performing on mountain roads. The low center of gravity typical of cruisers makes it capable of surprising acceleration and deceleration. But it is with the new V4 Granturismo engine and the electronic setting of a sport naked that every ride becomes fun, performance, and adrenaline.

            The unmistakable Diavel signature

            Refined styling is its hallmark, and the muscular yet elegant lines draw the perfect synthesis between a maxi sport naked and a muscle cruiser. Find out what's new about the design of the Diavel V4.

            Download the brochure

            Download the brochure and discover all you need to know about the Diavel V4

            Contact Us

            Contact us for more information about the Diavel V4.
