DUCATI E-BIKE

Size Guide

SIZE (MM)

S

M

L

XL

A

Top Tube Lenght , Orizzontal

560

600

630

665

D

Seat Tube Length - center to Top

400

435

470

520

E

ChainStay Length (mm)

450

450

450

450

G

Seat Tube Angle

74,7°

74,7°

74,7°

74,°7

F

Head Tube Angle

66°

66°

66°

66°

K

Head Tube Length (mm)

100

110

130

150

I

Wheel Base (mm)

1165

1189

1229

1255

C

Stack (mm)

596

606

624

642

B

Reach (mm)

413

432

456

483

Handlebar Width (mm)

780

780

780

780

Stem Length (mm)

50

50

50

50

Crank Lenght (mm)

165

165

165

165

M

Bottom Bracket Height (mm)

350

350

350

350

L

Fork Offset (mm)

44

44

44

447

Recommended size*:

SMALL 154-165 cm

MEDIUM 165-174 cm

LARGE 174-184 cm

XLARGE 185 cm and more

*This size chart according to height is only a suggestion. The optimal bike size also depends on other physical characteristics and the rider's riding style.

SIZE (MM)

S

M

L

XL

A

Top Tube Lenght , Orizzontal

582

600

629

660

D

Seat Tube Length - center to Top

385

415

450

495

E

ChainStay Length (mm)

453

453

453

453

G

Seat Tube Angle

75,5°

75,5°

75,5°

75,5°

F

Head Tube Angle

64.5°

64.5°

64.5°

64.5°

K

Head Tube Length (mm)

105

115

131

149

I

Wheel Base (mm)

1212

1233

1265

1298

C

Stack (mm)

614

623

638

654

B

Reach (mm)

423

439

464

491

Handlebar Width (mm)

800

800

800

800

Stem Length (mm)

50

50

50

50

Crank Lenght (mm)

165

165

165

165

M

Bottom Bracket Height (mm)

355

355

355

355

L

Fork Offset (mm)

44

44

44

44

Recommended size*:

SMALL 154-167 cm

MEDIUM 167-177 cm

LARGE 177-184 cm

XLARGE 185 cm and more

*This size chart according to height is only a suggestion. The optimal bike size also depends on other physical characteristics and the rider's riding style.

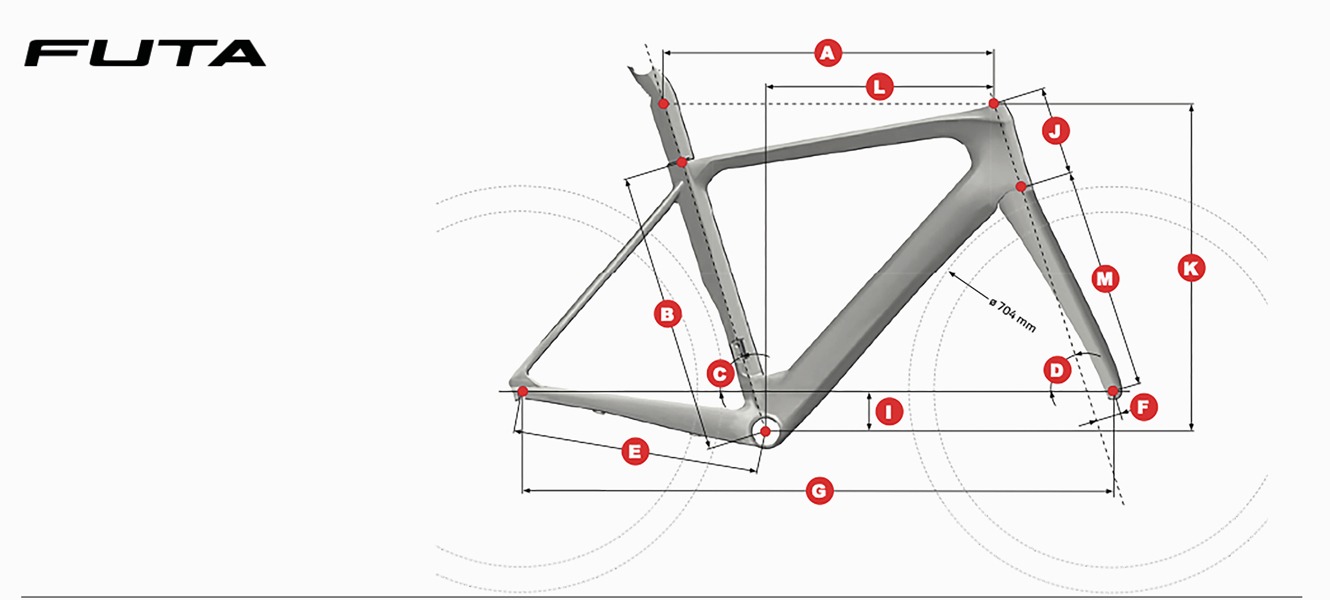

SIZE (MM)

S

M

L

XL

A

Horizontal TT lenght

529

549

569

593

B

Measured size

465

492

532

572

C

ST angle in'

73.7°

73°

72.7°

72.7°

D

HT angle in'

70.7°

71.5°

71.5°

71.5°

E

ChainStay Length (mm)

419

419

422

422

F

Fork offset

45

45

45

45

G

Wheelbase

997

1002

1024

1046

I

BB drop

69

69

69

69

J

HT length

133

155

159

192

K

Stack (mm)

538

562

590

622

L

Reach (mm)

372

377

386

397

M

Fork length

380

380

405

405

Recommended size*:

SMALL: 158-170 cm

MEDIUM: 168-180 cm

LARGE: 178-190 cm

XLARGE: 188-200 cm

*This size chart according to height is only a suggestion. The optimal bike size also depends on other physical characteristics and the rider's riding style.

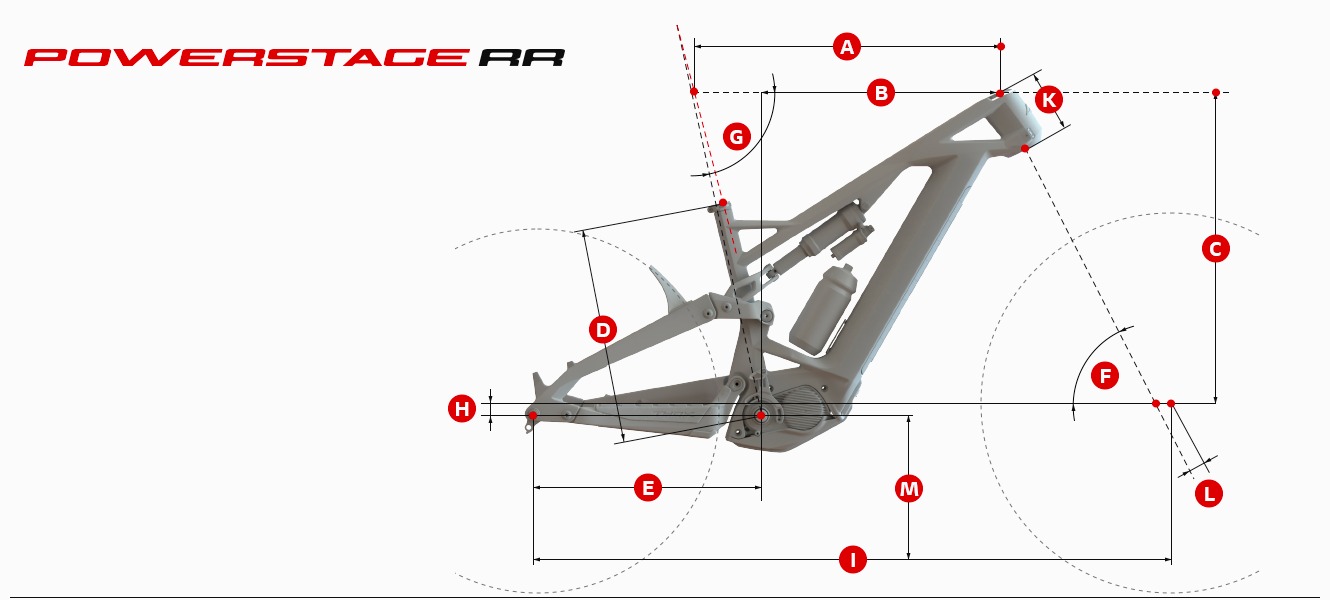

MISURE (MM)

M

L

XL

A

Top Tube Length, Orizzontal (mm)

587

612

632

B

Reach (mm)

455

475

495

C

Stack (mm)

625

638

656

D

Seat Tube Length - center to top (mm)

415

430

475

E

ChainStay Length (mm)

450

450

450

F

Head Tube Angle

64

64

64

G

Seat Tube Angle

78

78

78

H

BB Drop (mm)

9,4

9,4

9,4

I

Wheel Base (mm)

1246

1275

1300

K

Head Tube Length (mm)

106

118

130

L

Fork Offset (mm)

44

44

44

M

Bottom Bracket Height (mm)

361

361

361

Recommended size*:

MEDIUM: 168-177 cm

LARGE: 178-184 cm

XLARGE: 185-200 cm

*This size chart according to height is only a suggestion. The optimal bike size also depends on other physical characteristics and the rider's riding style.
